MRL
Agricultural

DABANG GOLD

R-1W

A6, A8

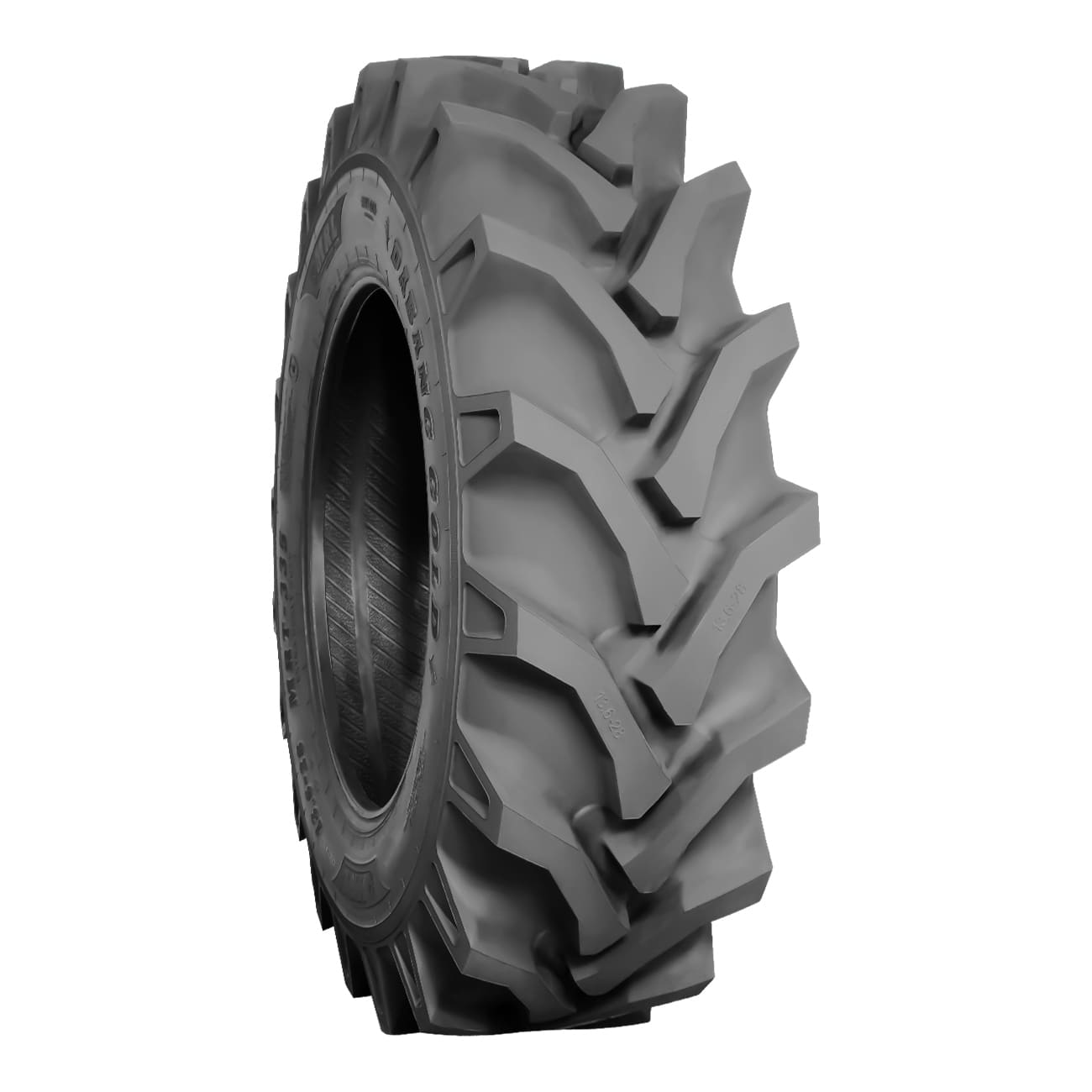

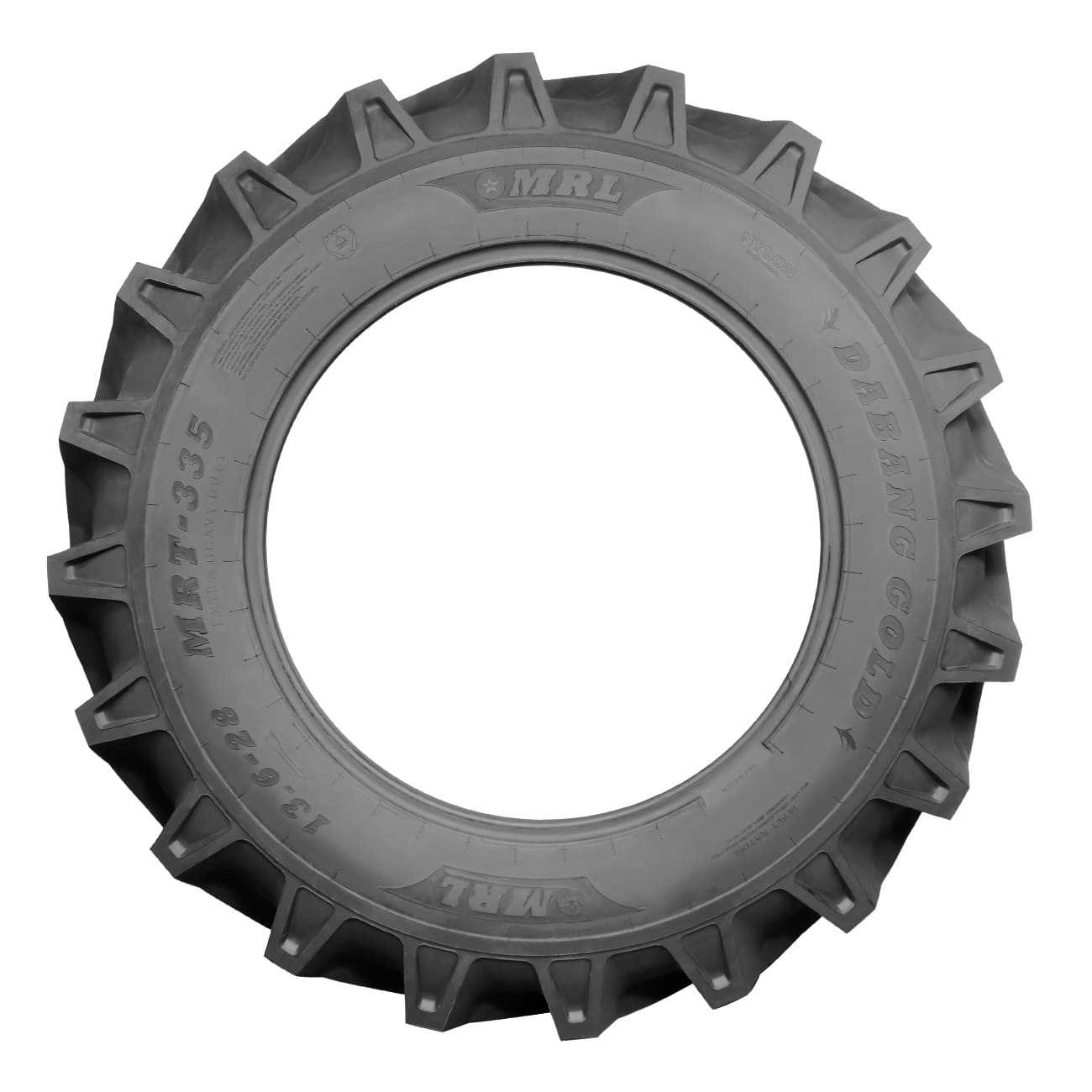

MRT 335 is best suitable for tractors in off-road applications. It is suitable for field and harvesting applications. Reinforced deep lugs are suitable to withstand traction and long life under hard working conditions. The submerged tie bar provides extra stability for the lug during traction.

Salient Features

Feature	Advantage	Benefit
Marge-Angled Lugs	Progressive passage for flow	Supports Self Cleaning
Submerge Tie bar	Better Stability to Lugs	Extended mileage
Higher tread depth	More Rubber on Tread	Increased Tyre Mileage

Send an enquiry

Tire Sizes

R-1W+ - 12.4-28 Print Certificate

2WD TRACTOR

4WD TRACTOR

COMBINE HARVESTER

UTILITY TRACTOR MFWA

R-1W+ - 13.6-28 Print Certificate

2WD TRACTOR

4WD TRACTOR

COMBINE HARVESTER

UTILITY TRACTOR MFWA

R-1W+ - 14.9-28 Print Certificate

2WD TRACTOR

4WD TRACTOR

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Send an enquiry

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Road Operation: Not high and Sustained Torque
				SW	OD
				mm	mm	mm	mm			Bar	Static	10	20	30	40
12.4-28	TT	W11	W11	315	1295	597	3873	12	125 A6/121 A8	1.8	2600	1810	1560	1300	1220
										2.0	2940	2040	1760	1470	1290
										2.3	3120	2170	1870	1560	1370
										2.5	3300	2290	1980	1650	1450

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Road Operation: Not high and Sustained Torque
				SW	OD
				mm	mm	mm	mm			Bar	Static	10	20	30	40
12.4-28	TT	W11	W11	315	1295	597	3873	14	126 A6/123 A8	1.9	2660	1850	1600	1330	1300
										2.1	3000	2090	1800	1500	1380
										2.3	3200	2220	1920	1600	1460
										2.6	3400	2360	2040	1700	1550

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index/Speed Symbol	Inflation pressure	Recommended load, lbs
											Speed, mph
											Road Operation: Not high and Sustained Torque
				SW	OD
				In	In	In	In			PSI	Static	6	12	19	25
12.4-28	TT	W11	W11	12.4	51.0	23.5	152.5	12	125 A6/121 A8	26.5	5732	3990	3439	2866	2690
										29.4	6482	4497	3880	3241	2844
										32.6	6878	4784	4123	3439	3020
										36.3	7275	5049	4365	3638	3197

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index/Speed Symbol	Inflation pressure	Recommended load, lbs
											Speed, mph
											Road Operation: Not high and Sustained Torque
				SW	OD
				In	In	In	In			PSI	Static	6	12	19	25
12.4-28	TT	W11	W11	12.4	51.0	23.5	152.5	14	126 A6/123 A8	27.6	5864	4079	3527	2932	2866
										30.6	6614	4608	3968	3307	3042
										33.9	7055	4894	4233	3527	3219
										37.7	7496	5203	4497	3748	3417

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Road Operation: Not high and Sustained Torque
				SW	OD
				mm	mm	mm	mm			Bar	Static	10	20	30	40
13.6-28	TT	W12	W11	352	1350	628	4038	12	128 A6/124 A8	1.8	2840	1970	1700	1420	1350
										2.0	3200	2220	1920	1600	1430
										2.2	3400	2360	2040	1700	1510
										2.4	3600	2500	2160	1800	1600
