MRL
Agricultural

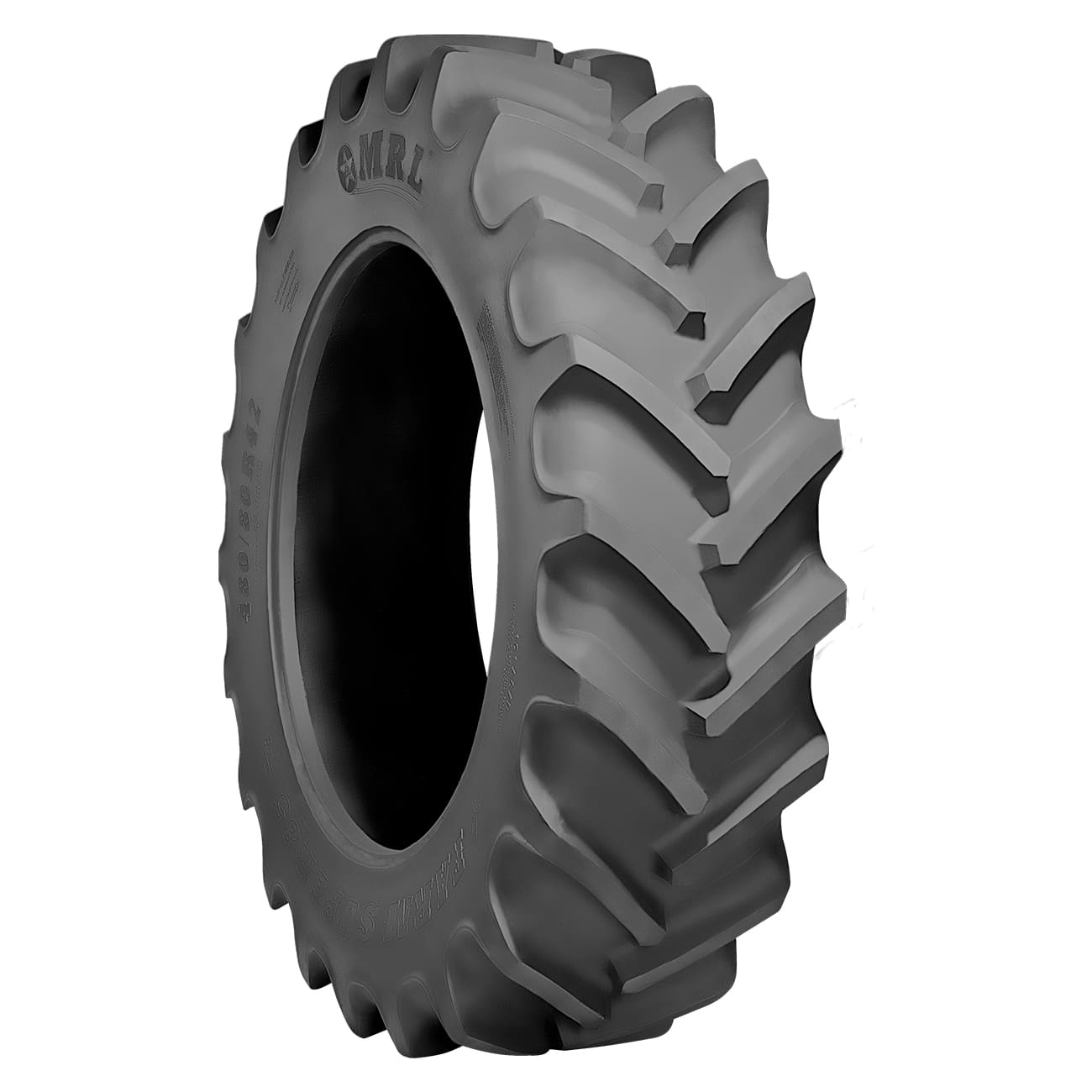

FARM SUPER 85

R-1W

A8, B, D

FARM SUPER RRT 885 is mainly for soil tillage and both field and road transport as well as for spreading operations. Extra reinforced carcass and cut resistance compound provide extended life. MRL special tread design allows for carrying very heavy loads at low pressure and ensuring reduced soil compaction.

Salient Features

Feature	Advantage	Benefit
Strong casing	Higher load carrying capacity	Extended Life
Heat resistance compound	Lower rolling resistance	Better mileage and durability
Cut and Chip resistance compound	Resistance to wear and tear	Support smooth operations

Send an enquiry

Tire Sizes

RADIAL R-1W TRACTOR 85 SERIES - 280/85R24 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 320/85R24 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 340/85R24 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 380/85R24 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 420/85R24 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 280/85R28 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 320/85R28 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 340/85R28 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 380/85R28 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 420/85R28 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 380/85R30 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 420/85R30 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 460/85R30 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 320/85R32 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 380/85R34 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 420/85R34 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 460/85R34 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 320/85R36 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 340/85R36 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 380/85R38 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 420/85R38 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 460/85R38 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 520/85R38 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
520/85R38	TL	DW16L	DW18L	531	1861	852	5566	155A8/B	0.8	2830	3310	5930	3870	2860	2760	2580	2580
									1.0	3220	3770	6760	4410	3260	3150	2940	2940
									1.2	3580	4190	7520	4910	3630	3500	3270	3270
									1.4	3920	4590	8230	5370	3970	3830	3580	3580
									1.6	4240	4960	8910	5810	4300	4150	3875	3875

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
520/85R38	TL	DW16L	DW18L	531	1861	852	5566	155D/158A8	0.8	3090	3620	5930	3870	3060	2830	2710	2580
									1.0	3520	4130	6760	4410	3480	3220	3090	2940
									1.2	3920	4590	7520	4910	3870	3580	3430	3270
									1.4	4290	5020	8230	5370	4240	3920	3760	3580
									1.6	4640	5430	8910	5810	4590	4240	4070	3875

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
520/85R38	TL	DW16L	DW18L	527	1849	847	5530	169D/172A8	1.2	3780	4420	7270	4740	3740	3460	3320	3160
									1.8	4790	5600	9200	6000	4740	4380	4200	4000
									2.4	5670	6630	10880	7100	5610	5180	4970	4730
									3.0	6460	7560	12400	8090	6390	5900	5660	5390
									3.6	7190	8410	13800	9000	7110	6570	6300	6000

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
520/85R38	TL	DW16L	DW18L	527	1849	847	5530	170A8/167B	1.2	3460	4040	7270	4740	3510	3380	3160	3160
									1.8	4390	5120	9200	6000	4440	4280	4000	4000
									2.4	5190	6060	10880	7100	5250	5060	4730	4730
									3.0	5910	6900	12400	8090	5980	5770	5390	5390
									3.6	6570	7680	13800	9000	6660	6420	6000	6000

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	40	50	65
520/85R38	TL	DW16L	DW18L	527	1849	847	5530	170D/173A8	1.2	3780	4420	7270	4740	3740	3460	3320	3160
									1.8	4790	5600	9200	6000	4740	4380	4200	4000
									2.4	5670	6630	10880	7100	5610	5180	4970	4730
									3	6460	7560	12400	8090	6390	5900	5660	5390
									3.6	7190	8410	13800	9000	7110	6570	6300	6000

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		PSI	6	6	static	6	16	19	25	31
520/85R38	TL	DW16L	DW18L	20.9	73.3	33.5	219.1	155A8/B	12	6230	7290	13060	8520	6300	6080	5680	5680
									15	7090	8300	14890	9710	7180	6940	6480	6480
									17.4	7890	9230	16560	10810	8000	7710	7200	7200
									20	8630	10110	18130	11830	8740	8440	7890	7890
									23.2	9340	10930	19630	12800	9470	9140	8540	8540

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		PSI	6	6	static	6	16	25	31	40
520/85R38	TL	DW16L	DW18L	20.9	73.3	33.5	219.1	155D/158A8	12	6810	7970	13060	8520	6740	6230	5970	5680
									15	7750	9100	14890	9710	7670	7090	6810	6480
									17.4	8630	10110	16560	10810	8520	7890	7560	7200
									20	9450	11060	18130	11830	9340	8630	8280	7890
									23.2	10220	11960	19630	12800	10110	9340	8960	8540

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		PSI	6	6	static	6	16	25	31	40
520/85R38	TL	DW16L	DW18L	20.7	72.8	33.3	217.7	169D/172A8	17	8330	9740	16010	10440	8240	7620	7310	6960
									26	10550	12330	20260	13220	10440	9650	9250	8810
									34.8	12490	14600	23960	15640	12360	11410	10950	10420
									44	14230	16650	27310	17820	14070	13000	12470	11870
									52.2	15840	18520	30400	19820	15660	14470	13880	13220

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		PSI	6	6	static	6	16	19	25	31
520/85R38	TL	DW16L	DW18L	20.7	72.8	33.3	217.7	170A8/167B	17	7620	8900	16010	10440	7730	7440	6960	6960
									26	9670	11280	20260	13220	9780	9430	8810	8810
									34.8	11430	13350	23960	15640	11560	11150	10420	10420
									44	13020	15200	27310	17820	13170	12710	11870	11870
									52.2	14470	16920	30400	19820	14670	14140	13220	13220

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	25	31	40
520/85R38	TL	DW16L	DW18L	20.7	72.8	33.3	217.7	170D/173A8	17	8330	9740	16010	10440	8240	7620	7310	6960
									26	10550	12330	20260	13220	10440	9650	9250	8810
									35	12490	14600	23960	15640	12360	11410	10950	10420
									44	14230	16650	27310	17820	14070	13000	12470	11870
									52	15840	18520	30400	19820	15660	14470	13880	13220

RADIAL R-1W TRACTOR 85 SERIES - 480/80R42 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 520/85R42 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	40	50	65
520/85R42	TL	DW16L	DW18L	527	1951	898	5835	157D/160A8	0.8	3310	3860	6350	4140	3270	3020	2900	2760
									1	3770	4400	7220	4710	3720	3440	3300	3140
									1.2	4190	4890	8030	5240	4140	3820	3660	3490
									1.4	4580	5350	8790	5730	4530	4180	4010	3820
									1.6	4950	5790	9490	6190	4890	4520	4330	4125

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	30	40	50
520/85R42	TL	DW16L	DW18L	527	1951	898	5835	157A8/B	0.8	3010	3520	6350	4140	3060	2950	2760	2760
									1	3430	4010	7220	4710	3490	3360	3140	3140
									1.2	3820	4460	8030	5240	3870	3730	3490	3490
									1.4	4180	4880	8790	5730	4240	4090	3820	3820
									1.6	4520	5280	9490	6190	4580	4410	4125	4125

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	40	50	65
520/85R42	TL	DW16L	DW18L	527	1951	898	5835	167D/170A8	1.6	4360	5100	8350	5450	4300	3970	3810	3630
									2	4970	5810	9520	6210	4910	4530	4350	4140
									2.4	5530	6460	10600	6920	5460	5050	4840	4610
									2.8	6050	7070	11590	7560	5970	5520	5290	5040
									3.2	6540	7640	12540	8180	6460	5970	5720	5450

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	30	40	50
520/85R42	TL	DW16L	DW18L	527	1951	898	5835	167A8/B	1.6	3980	4650	8350	5450	4030	3880	3630	3630
									2	4530	5300	9520	6210	4600	4430	4140	4140
									2.4	5040	5900	10600	6920	5120	4930	4610	4610
									2.8	5520	6460	11590	7560	5590	5390	5040	5040
									3.2	5970	6980	12540	8180	6050	5830	5450	5450

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	25	31	40
520/85R42	TL	DW16L	DW18L	20.7	76.8	35.4	229.7	157D/160A8	12	7290	8500	13990	9120	7200	6650	6390	6080
									15	8300	9690	15900	10370	8190	7580	7270	6920
									17	9230	10770	17690	11540	9120	8410	8060	7690
									20	10090	11780	19360	12620	9980	9210	8830	8410
									23	10900	12750	20900	13630	10770	9960	9540	9090

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	19	25	31
520/85R42	TL	DW16L	DW18L	20.7	76.8	35.4	229.7	157A8/B	12	6630	7750	13990	9120	6740	6500	6080	6080
									15	7560	8830	15900	10370	7690	7400	6920	6920
									17	8410	9820	17690	11540	8520	8220	7690	7690
									20	9210	10750	19360	12620	9340	9010	8410	8410
									23	9960	11630	20900	13630	10090	9710	9090	9090

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	25	31	40
520/85R42	TL	DW16L	DW18L	20.7	76.8	35.4	229.7	167D/170A8	23	9600	11230	18390	12000	9470	8740	8390	8000
									29	10950	12800	20970	13680	10810	9980	9580	9120
									35	12180	14230	23350	15240	12030	11120	10660	10150
									41	13330	15570	25530	16650	13150	12160	11650	11100
									46	14410	16830	27620	18020	14230	13150	12600	12000

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	19	25	31
520/85R42	TL	DW16L	DW18L	20.7	76.8	35.4	229.7	167A8/B	23	8770	10240	18390	12000	8880	8550	8000	8000
									29	9980	11670	20970	13680	10130	9760	9120	9120
									35	11100	13000	23350	15240	11280	10860	10150	10150
									41	12160	14230	25530	16650	12310	11870	11100	11100
									46	13150	15370	27620	18020	13330	12840	12000	12000

RADIAL R-1W TRACTOR 85 SERIES - 480/80R46 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

RADIAL R-1W TRACTOR 85 SERIES - 520/85R46 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	40	50	65
520/85R46	TL	DW16L	DW18L	527	2052	949	6137	158D/161A8	0.8	3390	3970	6510	4250	3350	3100	2970	2830
									1	3860	4520	7430	4850	3830	3540	3390	3230
									1.2	4300	5030	8260	5390	4250	3930	3770	3590
									1.4	4710	5500	9040	5900	4660	4300	4130	3930
									1.6	5090	5950	9780	6380	5040	4650	4460	4250

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	30	40	50
520/85R46	TL	DW16L	DW18L	527	2052	949	6137	158A8/B	0.8	3100	3620	6510	4250	3140	3030	2830	2830
									1	3530	4130	7430	4850	3590	3460	3230	3230
									1.2	3930	4600	8260	5390	3980	3840	3590	3590
									1.4	4300	5030	9040	5900	4360	4210	3930	3930
									1.6	4650	5440	9780	6380	4720	4550	4250	4250

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	40	50	65
520/85R46	TL	DW16L	DW18L	527	2052	949	6137	173D/176A8	1.6	4570	5330	8760	5720	4510	4170	4000	3810
									2.2	5500	6420	10560	6890	5440	5030	4820	4590
									2.8	6330	7390	12140	7920	6260	5780	5540	5280
									3.4	7090	8280	13590	8870	7000	6470	6210	5910
									4	7800	9110	14950	9750	7700	7120	6830	6500

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended load, kg
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		bar	10	10	Static	10	25	30	40	50
520/85R46	TL	DW16L	DW18L	527	2052	949	6137	173 A8/B	1.6	4170	4870	8760	5720	4230	4080	3810	3810
									2.2	5020	5870	10560	6890	5090	4910	4590	4590
									2.8	5780	6760	12140	7920	5860	5650	5280	5280
									3.4	6470	7570	13590	8870	6560	6320	5910	5910
									4	7120	8320	14950	9750	7220	6960	6500	6500

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	25	31	40
520/85R46	TL	DW16L	DW18L	20.7	80.8	37.4	241.6	158D/161A8	12	7470	8740	14340	9360	7380	6830	6540	6230
									15	8500	9960	16370	10680	8440	7800	7470	7110
									17	9470	11080	18190	11870	9360	8660	8300	7910
									20	10370	12110	19910	13000	10260	9470	9100	8660
									23	11210	13110	21540	14050	11100	10240	9820	9360

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	19	25	31
520/85R46	TL	DW16L	DW18L	20.7	80.8	37.4	241.6	158A8/B	12	6830	7970	14340	9360	6920	6670	6230	6230
									15	7780	9100	16370	10680	7910	7620	7110	7110
									17	8660	10130	18190	11870	8770	8460	7910	7910
									20	9470	11080	19910	13000	9600	9270	8660	8660
									23	10240	11980	21540	14050	10400	10020	9360	9360

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	25	31	40
520/85R46	TL	DW16L	DW18L	20.7	80.8	37.4	241.6	173D/176A8	23	10070	11740	19300	12600	9930	9190	8810	8390
									32	12110	14140	23260	15180	11980	11080	10620	10110
									41	13940	16280	26740	17440	13790	12730	12200	11630
									49	15620	18240	29930	19540	15420	14250	13680	13020
									58	17180	20070	32930	21480	16960	15680	15040	14320

Size	TYPE	Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				in	in	in	in		psi	6	6	static	6	16	19	25	31
520/85R46	TL	DW16L	DW18L	20.7	80.8	37.4	241.6	173 A8/B	23	9190	10730	19300	12600	9320	8990	8390	8390
									32	11060	12930	23260	15180	11210	10810	10110	10110
									41	12730	14890	26740	17440	12910	12440	11630	11630
									49	14250	16670	29930	19540	14450	13920	13020	13020
									58	15680	18330	32930	21480	15900	15330	14320	14320

RADIAL R-1W TRACTOR 85 SERIES - 480/80R50 Print Certificate

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Send an enquiry
