IRRIGATION RC

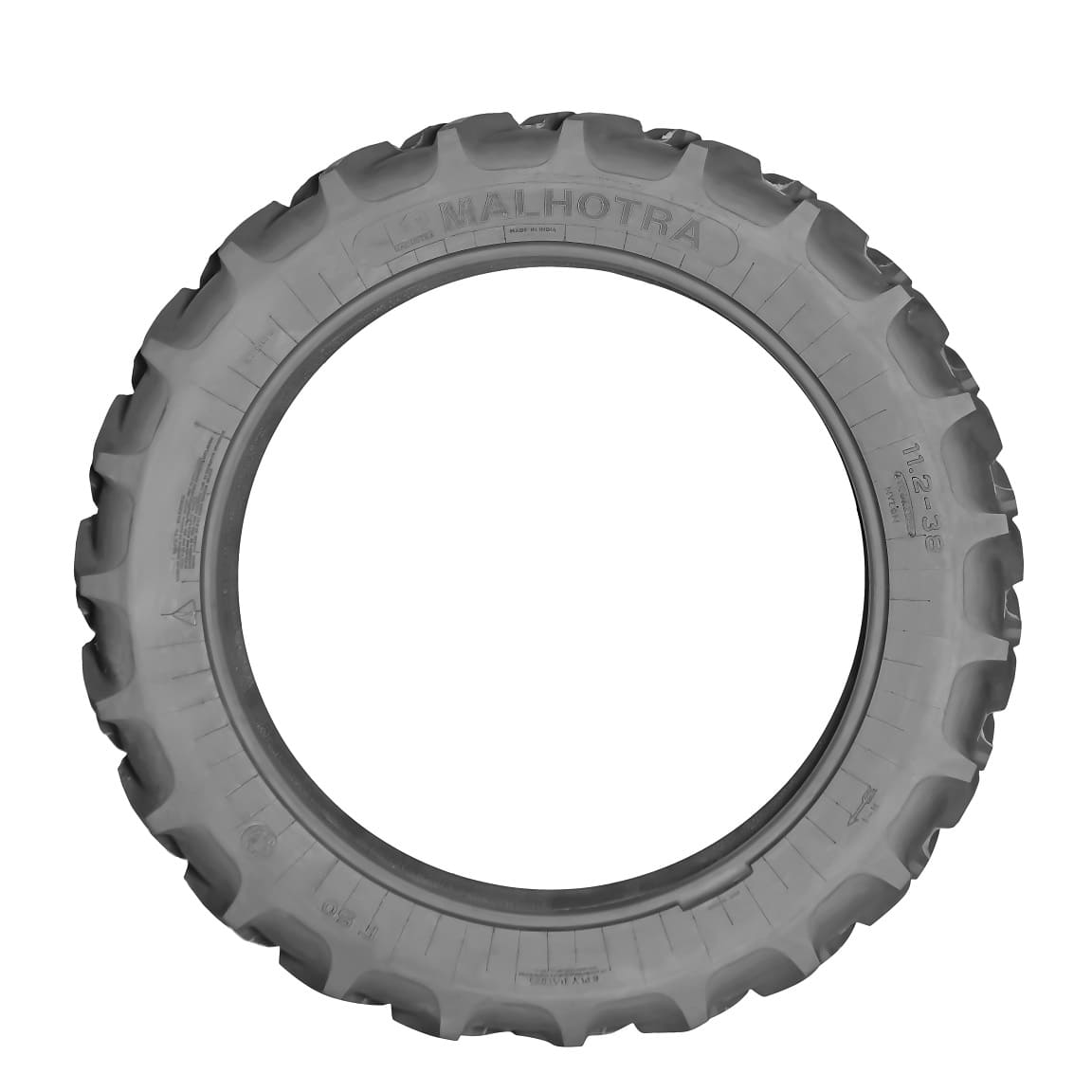

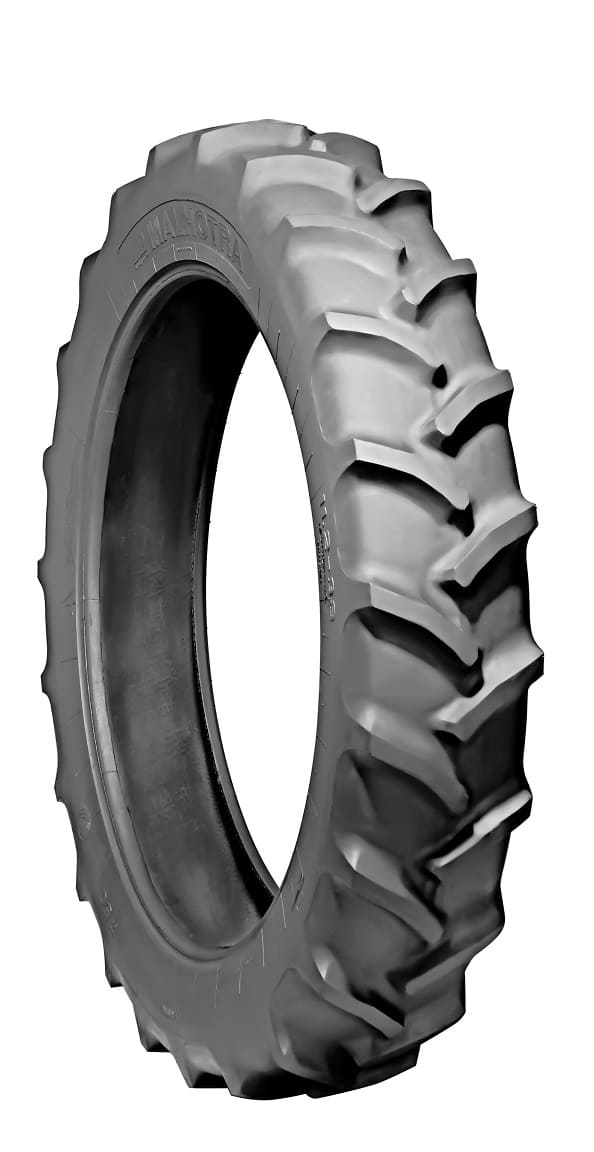

MRT 320 is designed for irrigation application with pivot irrigators. It is particularly designed to provide the best performance in wet and moist soils. It ensures better self-cleaning properties has a superior grip in this soil condition and protects corps.

Salient Features

Feature	Advantage	Benefit
Curve shaped lugs	Easy flow of mud	Lowers soil distortion)
Cutting-edge nose design	Smooth rotation in wet and soil conditions	Reduces damage to soil
Wider tread pattern extent	Higher footprint	Safeguard of soil

Send enquiry

Tire Sizes

11.2-24

IRRIGATION 11.2-24 Print Certificate

Send enquiry

PIVOT MACHINE

First Name

Last Name

Email ID

Contact No.

Address

Country

Province

Message

I agree to Privacy Policy and Legal
MRL Tyres will not share your information with any third party. We will also ensure your data is securely transmitted to our secure data environment where it will be protected within the MRL Tyres infrastructure.
By using this form you agree with the storage and handling of your data by this website.

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Field operation			Road Operation: Not high and Sustained Torque
				SW	OD						High Torque	Low Torque
				mm	mm	mm	mm			Bar	10	10	20	Static	10	20	30	40
11.2-24	TT	W10	W9	284	1090	515	3200	06	110 A6/106 A8	1.3	890	1240	990	1780	1240	990	890	801
										1.5	940	1310	1040	1880	1310	1040	940	846
										1.6	1000	1390	1110	2000	1390	1110	1000	900
										1.8	1060	1470	1180	2120	1470	1180	1060	950

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Field operation			Road Operation: Not high and Sustained Torque
				SW	OD						High Torque	Low Torque
				mm	mm	mm	mm			Bar	10	10	20	Static	10	20	30	40
11.2-24	TL	W10	W9	284	1090	515	3200	06	110 A6/106 A8	1.3	890	1240	990	1780	1240	990	890	801
										1.5	940	1310	1040	1880	1310	1040	940	846
										1.6	1000	1390	1110	2000	1390	1110	1000	900
										1.8	1060	1470	1180	2120	1470	1180	1060	950

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h
											Field operation			Road Operation: Not high and Sustained Torque
				SW	OD						High Torque	Low Torque
				mm	mm	mm	mm			Bar	10	10	20	Static	10	20	30	40
11.2-24	TL	W10	W9	284	1090	515	3200	08	116 A6/112 A8	1.8	1050	1460	1170	2100	1460	1170	1050	945
										2.0	1110	1540	1230	2220	1540	1230	1110	999
										2.2	1180	1640	1310	2360	1640	1310	1180	1062
										2.4	1250	1740	1390	2500	1740	1390	1250	1120

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	PR	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
											Speed, mph
											Field operation			Road Operation: Not high and Sustained Torque
				SW	OD						High Torque	Low Torque
				In	In	In	In			PSI	6	6	12	Static	6	12	19	25
11.2-24	TT	W10	W9	284	1090	515	3200	06	110 A6/106 A8	19.1	1962	2734	2183	3924	2734	2183	1962	1766
										21.2	2072	2888	2293	4145	2888	2293	2072	1865
										23.5	2205	3064	2447	4409	3064	2447	2205	1984
										26.1	2337	3241	2601	4674	3241	2601	2337	2094

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Loaded Static Radius	Rolling Circumference	PR	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
											Speed, mph
											Field operation			Road Operation: Not high and Sustained Torque
				SW	OD						High Torque	Low Torque
				In	In	In	In			PSI	6	6	12	Static	6	12	19	25
11.2-24	TL	W10	W9	284	1090	515	3200	06	110 A6/106 A8	19.1	1962	2734	2183	3924	2734	2183	1962	1766
										21.2	2072	2888	2293	4145	2888	2293	2072	1865
										23.5	2205	3064	2447	4409	3064	2447	2205	1984
										26.1	2337	3241	2601	4674	3241	2601	2337	2094
