MRL
Industrial / OTR

RIM-GUARD

IND1/3

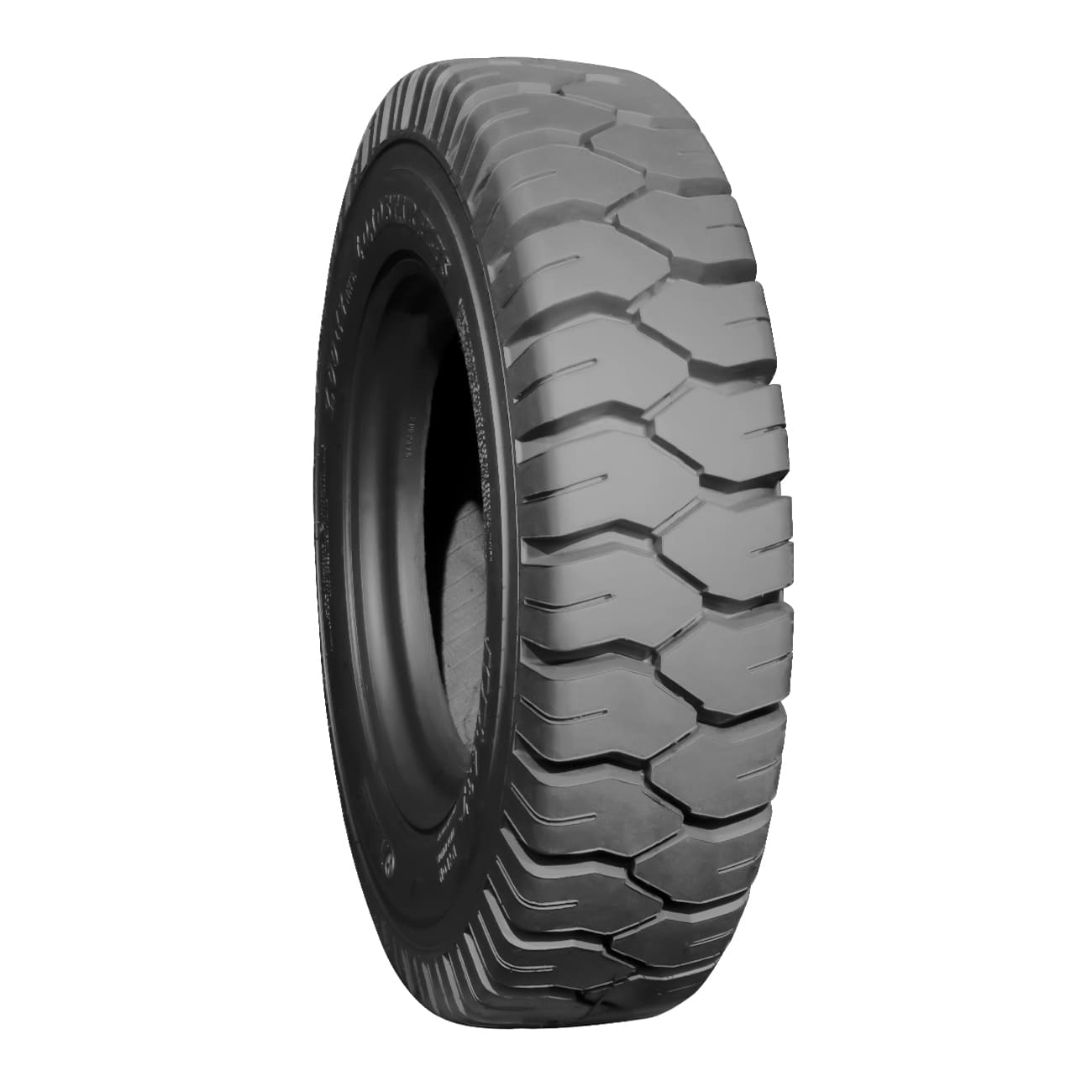

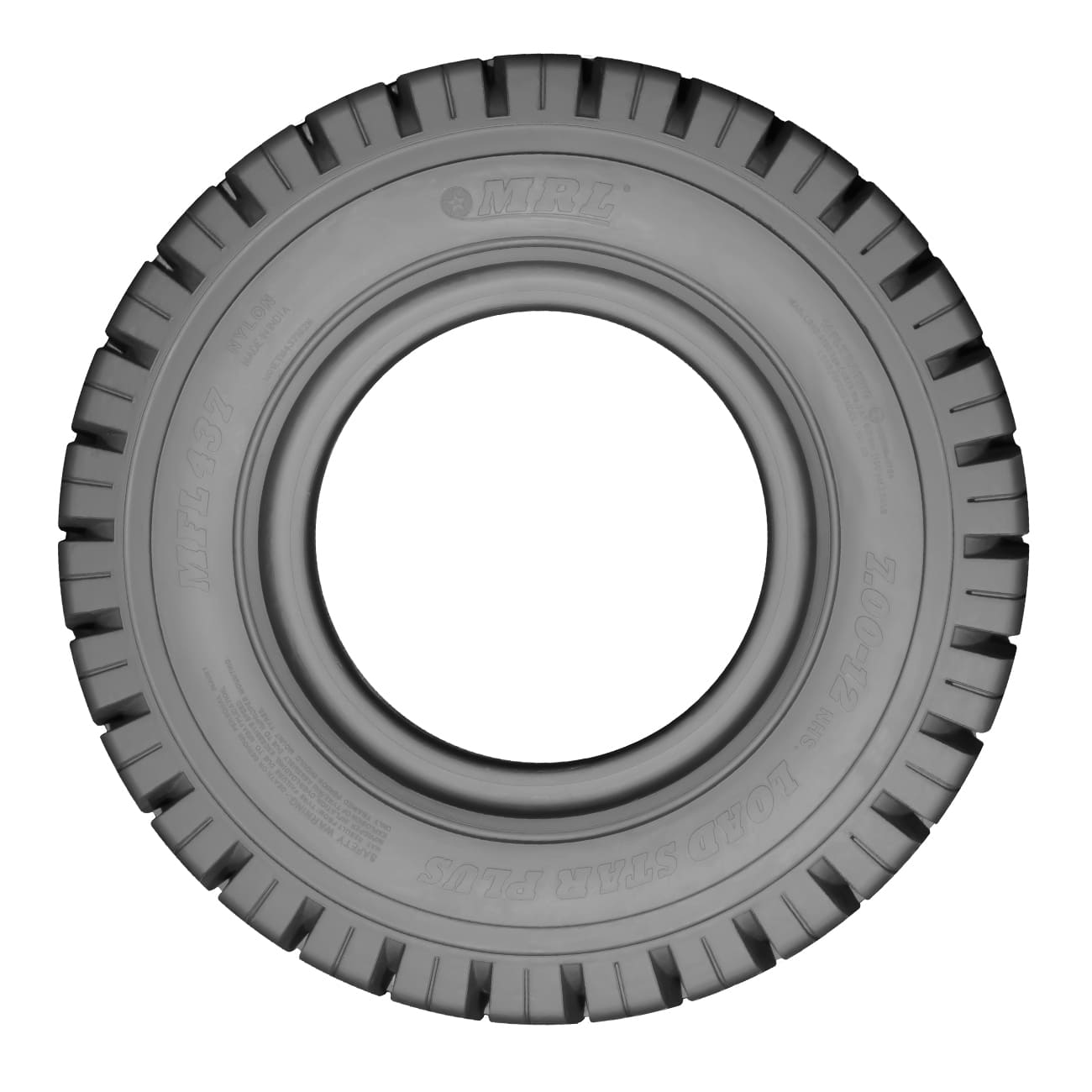

RIM GUARD MFL 437 is applicable for hay harvesting having rotor rakes/tedders as well as for logistic particularly in forklift .It’s heavy construction with deep tread gives excellent stability in operation.

Salient Features

Feature	Advantage	Benefit
High strength casing materials	High strength casing	High stability of vehicle
Additional rubber at shoulder	Sturdy buttress area	Better lateral stability
Chip and cut resistant	Resistance to wear and tear	Extended mileage & durability

Send an enquiry

Tire Sizes

FORKLIFT INDUSTRIAL (PNEUMATIC) - 18X 7-8 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 4.00-8 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 5.00-8 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 6.00-9 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 6.50-10 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 7.00-12 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 8.15-15 Print Certificate

FORKLIFT

FORKLIFT INDUSTRIAL (PNEUMATIC) - 8.25-15 Print Certificate

FORKLIFT

Send an enquiry

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
									Speed, km/h
									Load Wheel
				SW	OD				All wheel	Load Wheel	Steer Wheel	Other Vehicle
				mm	mm			Bar	Static	10	10	10
18X7-8	TT	4.33R	5.00F	173	470	16	128A2	8.1	1957	1570	1270	1290
								9.0	2082	1680	1330	1330
								10	2214	1800	1386	1366

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		PR	Load Index/Speed Symbol	Inflation pressure	Recommended Load, lbs
									Speed, mph
										Load Wheel
				SW	OD				All wheel	Load Wheel	Steer Wheel	Other Vehicle
				In	In			PSI	Static	6	6	6
18X7-8	TT	4.33R	5.00F	6.8	18.5	16	128A2	117.5	4315	3461	2800	2844
								130.5	4589	3704	2932	2932
								145.0	4881	3968	3056	3012

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
									Speed, km/h
									Load Wheel
				SW	OD				All wheel	Load Wheel	Steer Wheel	Other Vehicle
				mm	mm			Bar	Static	10	10	10
4.00-8	TT	3.25I	3.00D	115	414	10	100A2	8.1	870	700	560	570
								9.0	925	750	590	590
								10	984	800	616	607

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		PR	Load Index/Speed Symbol	Inflation pressure	Recommended Load, lbs
									Speed, mph
										Load Wheel
				SW	OD				All wheel	Load Wheel	Steer Wheel	Other Vehicle
				In	In			PSI	Static	6	6	6
4.00-8	TT	3.25I	3.00D	4.5	16.3	10	100A2	117.5	1918	1543	1235	1257
								130.5	2040	1653	1301	1301
								145.0	2169	1764	1358	1339

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
									Speed, km/h
									Load Wheel
				SW	OD				All wheel	Load Wheel	Steer Wheel	Other Vehicle
				mm	mm			Bar	Static	10	10	10
5.00-8	TT	3.0D	3.25I	135	467	10	114A2	8.1	1283	1030	830	840
								9.0	1365	1100	870	870
								10	1451	1180	909	896
