MRL
Industrial / OTR

ROCKY HD

R-4

A6, A8, A2

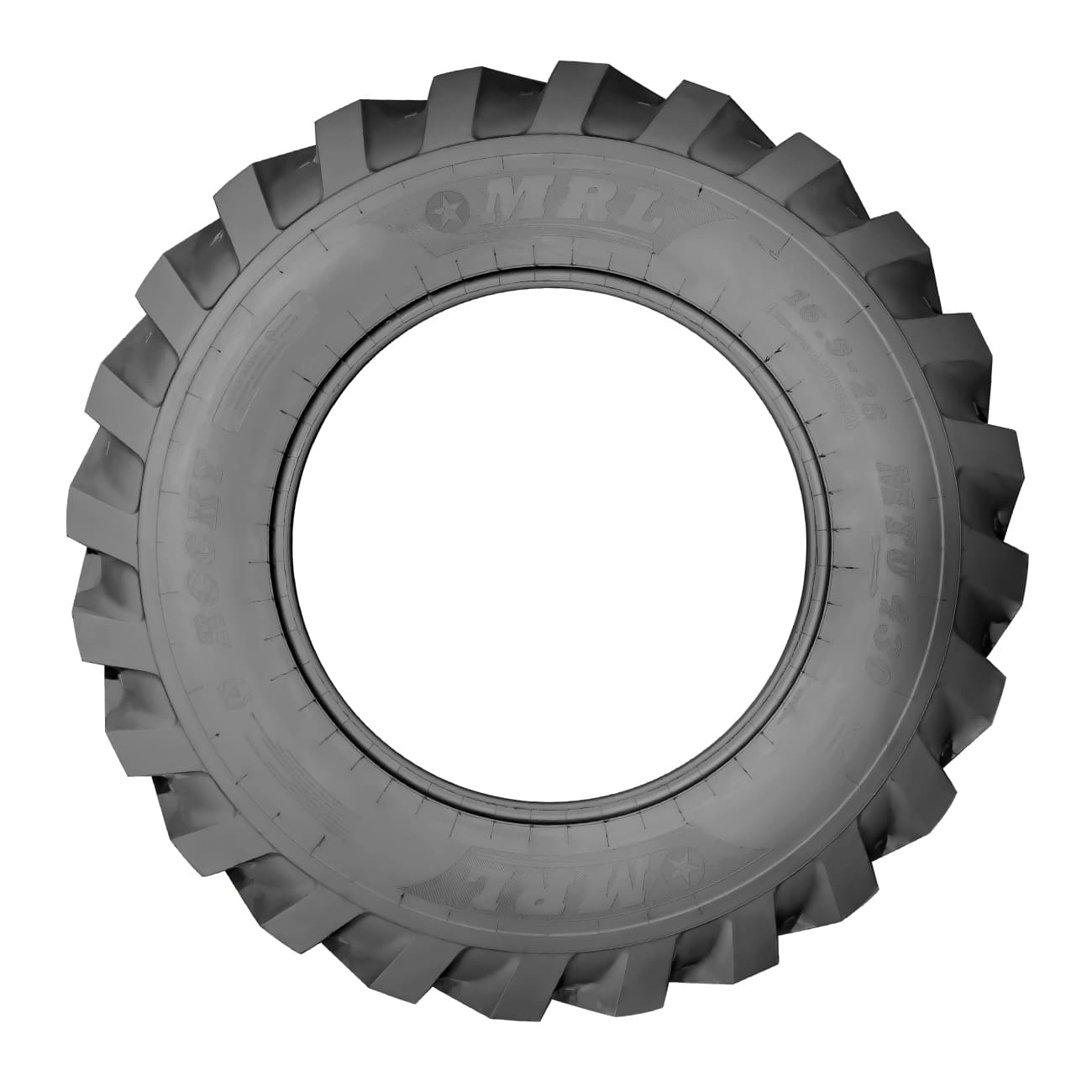

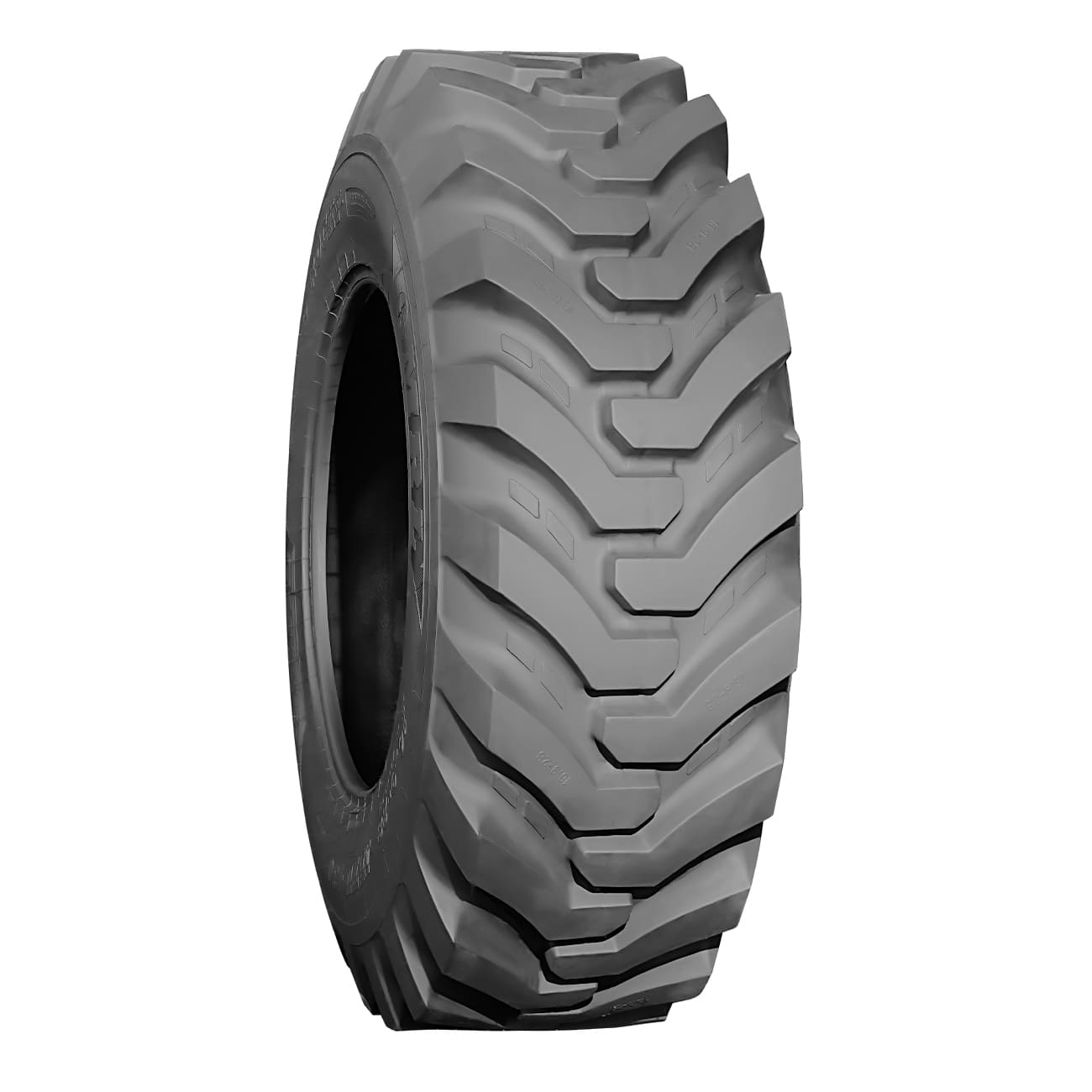

MTU 430 is a heavy duty tyre designed for Industrial drive tyre specially for construction application. Its unique tread pattern having strong casing gives best stability of vehicle during operation. Its cut and chip compound helps to withstand in bad ground condition , strong casing also add extra value to avail extended life.

Salient Features

Feature	Advantage	Benefit
Wide double angle thick lugs	Optimum traction	Better lateral stability
Cross lug design at centre	Better traction	High stability of vehicle
Chip and cut resistant	Resistance to wear and tear	Extended mileage & durability

Send an enquiry

Tire Sizes

ATU (ALL TRACTION UTILITY) - 12.5/70-16 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 15.5/60-18 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 15.5/70-18 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 17.5/65-20 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 400/70-20 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 16.9-24 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 19.5L-24 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 400/80-24 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 440/80-24 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 18.4-26 Print Certificate

DOZER

GRADER

BACKHOE

ATU (ALL TRACTION UTILITY) - 16.9-28 Print Certificate

DOZER

GRADER

BACKHOE

Send an enquiry

Size	TYPE	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index /Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h

				SW	OD						Paver & Compactor
				mm	mm	mm	mm			Bar	10
12.5/70-16	TL	10LB	-	315	856	380	2590	14	134A2	3.7	2120

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation pressure	Recommended Load, lbs
											Speed, mph

				SW	OD						Paver & Compactor
				In	In	In	In			PSI	6
12.5/70-16	TL	10LB	-	12.4	33.7	15.0	102.0	14	134A2	53.7	4674

Size	TYPE	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index /Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h

				SW	OD						Paver & Compactor
				mm	mm	mm	mm			Bar	10
15.5/60-18	TL	W13	-	400	950	438	2870	10	139A2	3	2430

Size	TYPE	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index /Speed Symbol	Inflation Pressure	Recommended Load, kgs.
											Speed, km/h

				SW	OD						Paver & Compactor
				mm	mm	mm	mm			Bar	10
15.5/60-18	TL	W13	-	400	950	438	2870	14	144A2	3.6	2800

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation pressure	Recommended Load, lbs
											Speed, mph

				SW	OD						Paver & Compactor
				In	In	In	In			PSI	6
15.5/60-18	TL	W13	-	15.7	37.4	17.2	113.0	10	139A2	43.5	5357
