MRL
Agricultural

SPRAYER

R-1W

A8, D

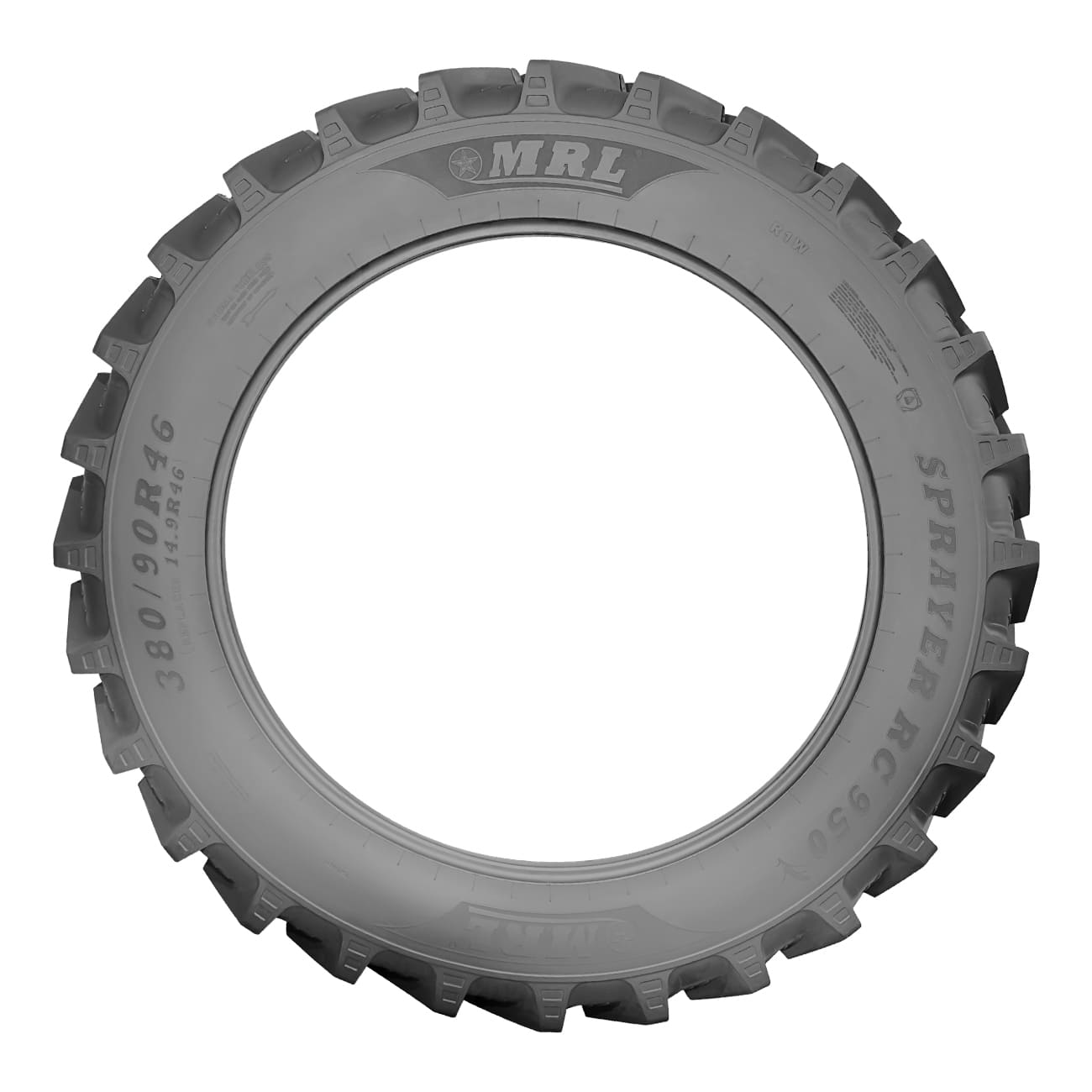

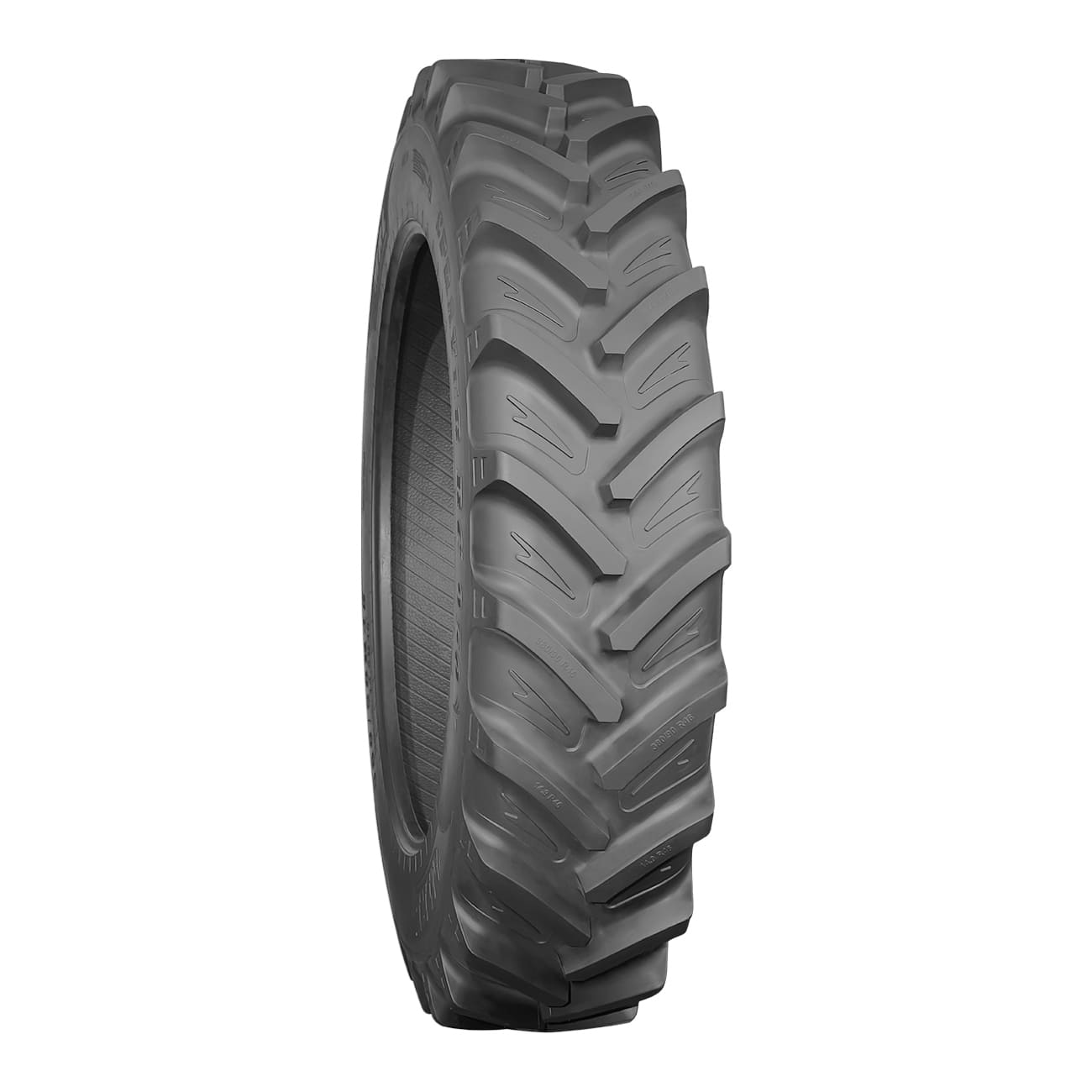

SPRAYER is a special line of radial narrow tyres for all types of cultivation, harvesting, spraying, and row crop applications. MRL special tread design with a rounded shoulder provides excellent traction performance, stability, and self-cleaning properties.

Salient Features

Feature	Advantage	Benefit
Narrow tread width	Less soil compaction	Better crop yield
Special compound	Cut and chip resistance	Extended life
Spherical shoulder profile	Smooth turning, supports cornering	Better steering response

Send an enquiry

Tire Sizes

RADIAL R-1W ROW CROP 95 SERIES - 210/95R 32 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 230/95R32 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R32 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 230/95R36 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R36 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R38 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 230/95R42 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R42 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 230/95R44 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R44 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 300/95R46 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 320/90R46 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 380/90R46 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 230/95R48 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R48 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 340/85R48 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 380/90R50 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 300/95R52 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 270/95R54 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

RADIAL R-1W ROW CROP 95 SERIES - 320/90R54 Print Certificate

2WD TRACTOR

4WD TRACTOR

WATER SPRINKLER

Send an enquiry

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
210/95R32	TL	W7	W6	214	1190	562	3559	116D/119A8	0.8	790	920	1500	980	770	710	680	650
									1.2	1000	1170	1910	1250	980	910	870	830
									1.6	1180	1380	2250	1470	1160	1070	1030	980
									2.0	1350	1570	2580	1680	1330	1230	1180	1120
									2.4	1500	1750	2880	1880	1480	1370	1310	1250

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
210/95R32	TL	W7	W6	8.4	46.9	22.1	140.1	116D/119A8	12	1740	2030	3300	2160	1700	1560	1500	1430
									17	2200	2580	4210	2750	2160	2000	1920	1830
									23	2600	3040	4960	3240	2560	2360	2270	2160
									29	2970	3460	5680	3700	2930	2710	2600	2470
									35	3300	3850	6340	4140	3260	3020	2890	2750

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
230/95R32	TL	W7	W8	238	1253	588	3747	128D/131A8	1.2	1140	1330	2190	1430	1130	1040	1000	950
									1.8	1440	1680	2760	1800	1420	1310	1260	1200
									2.4	1700	1990	3270	2130	1680	1550	1490	1420
									3.0	1940	2270	3730	2430	1920	1770	1700	1620
									3.6	2160	2520	4140	2700	2130	1970	1890	1800

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
230/95R32	TL	W7	W8	9.4	49.3	23.1	147.5	128D/131A8	17	2510	2930	4820	3150	2490	2290	2200	2090
									26	3170	3700	6080	3960	3130	2890	2780	2640
									35	3740	4380	7200	4690	3700	3410	3280	3130
									44	4270	5000	8220	5350	4230	3900	3740	3570
									52	4760	5550	9120	5950	4690	4340	4160	3960

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
270/95R32	TL	W9	W8,W10	275	1300	607	3888	132D/135A8	1.2	1270	1480	2440	1590	1260	1160	1110	1060
									1.8	1610	1870	3080	2010	1590	1470	1410	1340
									2.4	1900	2210	3630	2370	1870	1730	1660	1580
									3.0	2160	2520	4140	2700	2130	1970	1890	1800
									3.6	2400	2800	4600	3000	2370	2190	2100	2000

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommend load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
300/95R52	TL	W9	W10,W11	12.3	74.4	35.3	222.7	159A8/156D	23	6190	7220	11850	7730	6100	5640	5420	5150
									32	7440	8700	14300	9320	7360	6810	6520	6210
									41	8570	10020	16480	10750	8480	7840	7510	7160
									49	9600	11230	18440	12030	9490	8790	8410	8020
									58	10570	12360	20260	13220	10440	9650	9250	8810
